SCAVENGER ONLINE GUIDE
TABLE OF CONTENTS
PACKING LIST

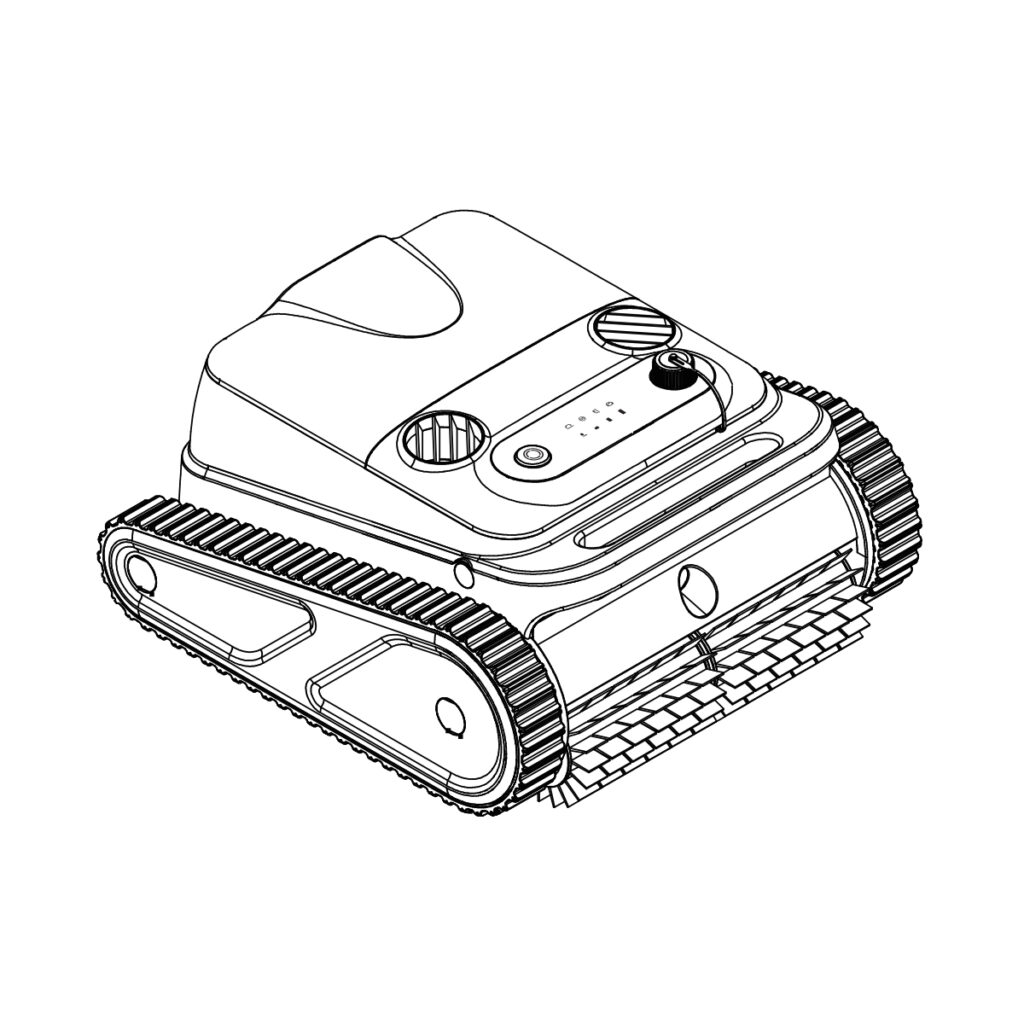

Robotic Pool Cleaner

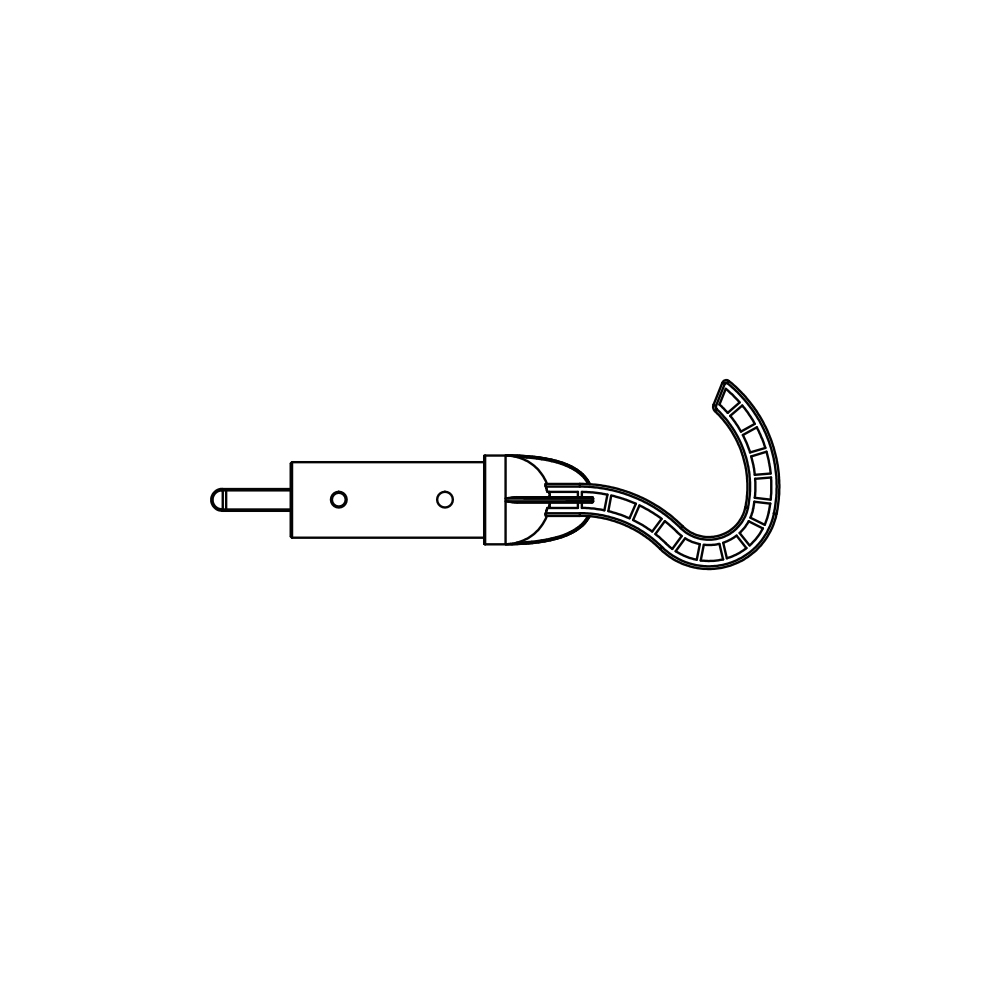

Retrieval Hook

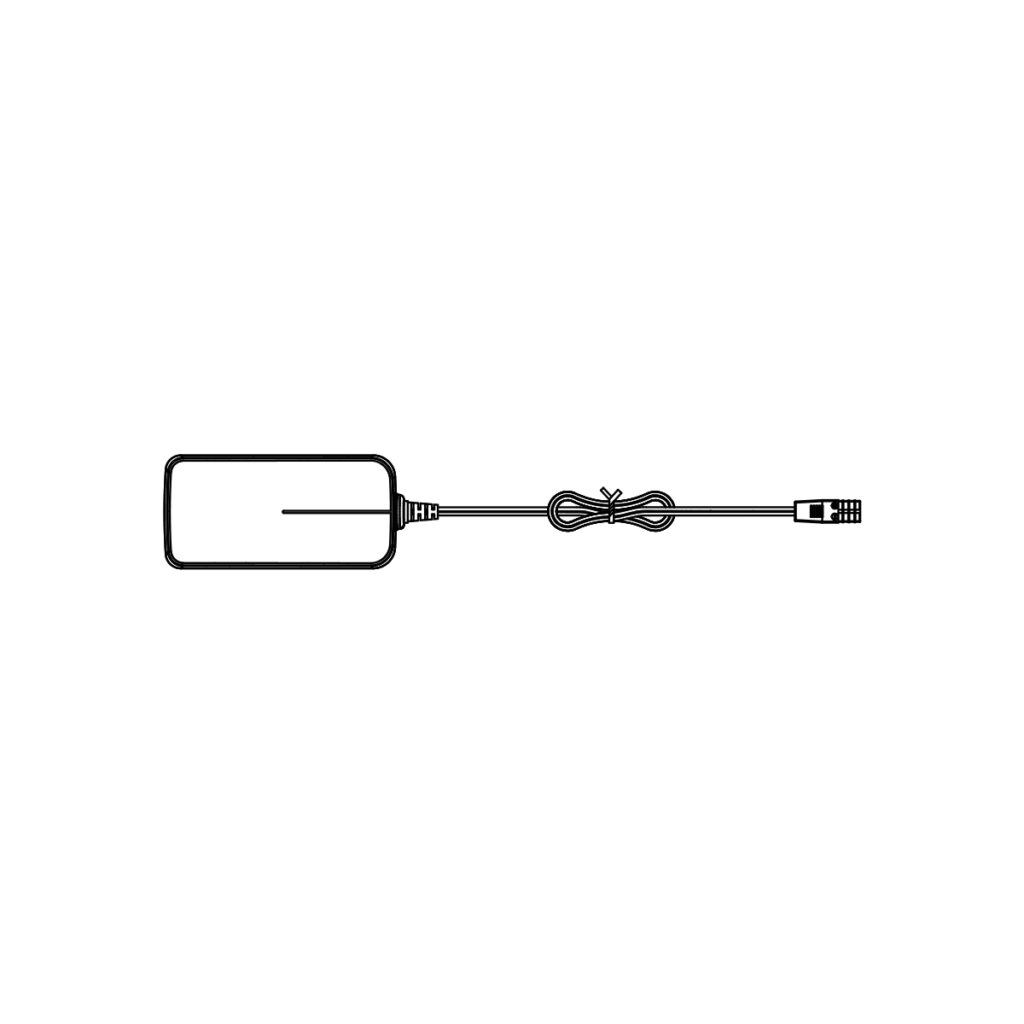

Power Adapter

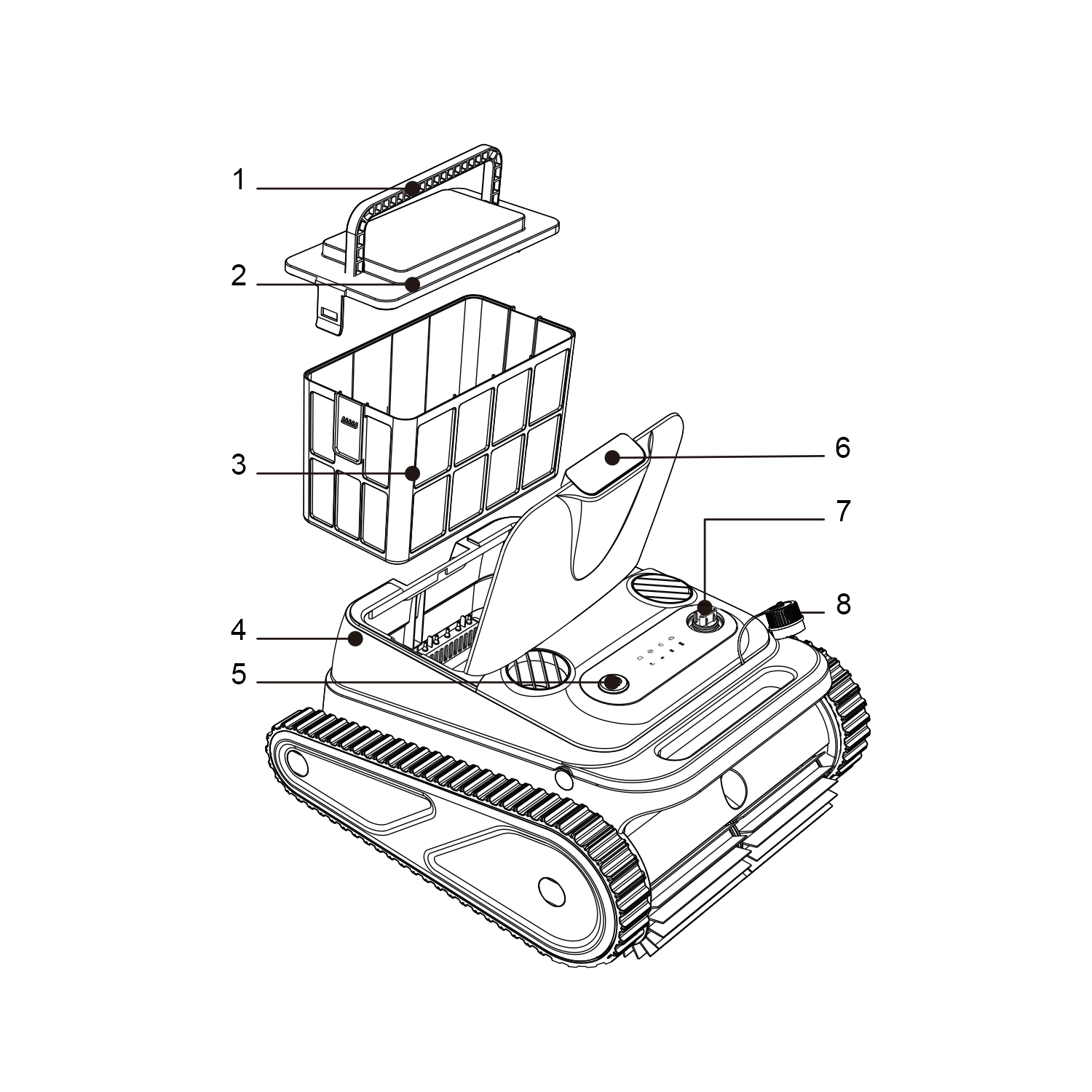

MAIN COMPONENTS
NO. | PART NAME |
|---|---|
1 | Filter Basket Handle |
2 | Filter Basket Cap |
3 | Filter Basket |
4 | Upper Shell |
5 | Power Button / Mode Button |
6 | Filter Lid Switch |
7 | Charging Port |
8 | Charging Port Lid |

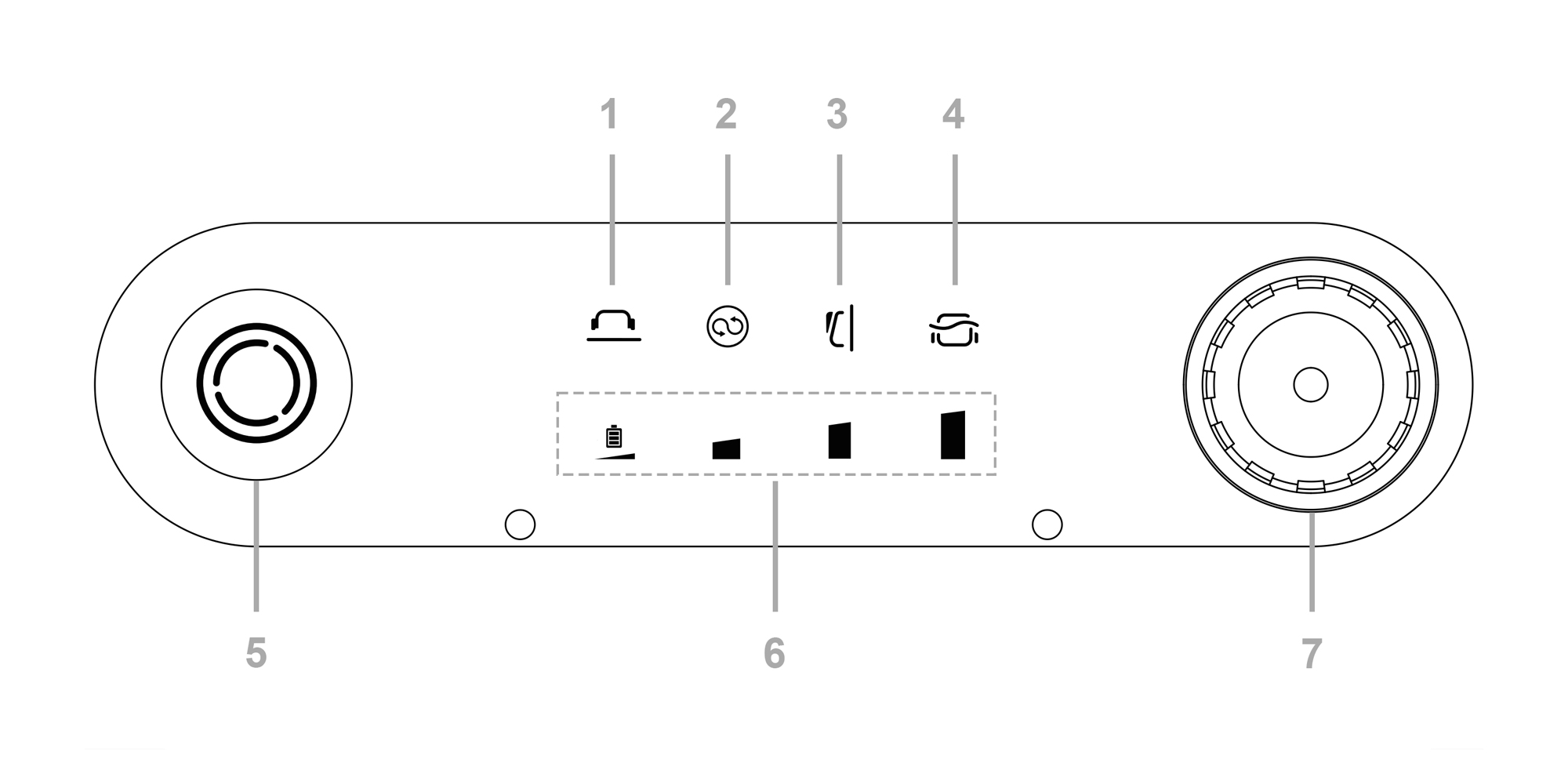

USER INTERFACE
NO. | INDICATOR NAME | TYPE |
|---|---|---|
1 | Bottom Cleaning Mode | LED indicator |
2 | Full Area Cleaning Mode | LED indicator |
3 | Wall Cleaning Mode | LED indicator |
4 | Waterline Cleaning Mode | LED indicator |
5 | Power Button / Mode Button | Button |
6 | Battery Level | LED indicator |
7 | Charging Port | Port |
LED INDICATORS
TYPE | STATUS | DESCRIPTION |
|---|---|---|
Mode | Bottom cleaning | Blue light in corresponding indicator always on. |
Mode | Full area cleaning | Blue light in corresponding indicator always on. |
Mode | Wall cleaning | Blue light in corresponding indicator always on. |
Mode | Waterline cleaning | Blue light in corresponding indicator always on. |
Failure | Blocked motor, short circuit or overcurrent failure | Red light flashes 3 times per second. Stops after 5 seconds. |
CLEANING MODES
MODE | DESCRIPTION |
|---|---|
Bottom cleaning | Robotic pool cleaner cleans only the bottom of the swimming pool. |
Full area cleaning | Robotic pool cleaner cleans only the bottom, walls and waterline of the swimming pool. |
Wall cleaning | Robotic pool cleaner cleans only the walls of the swimming pool. |
Waterline cleaning | Robotic pool cleaner cleans only the waterline of the swimming pool. |
